Boiler Feed Pump Calculation: The Definitive Hydraulic Sizing Handbook

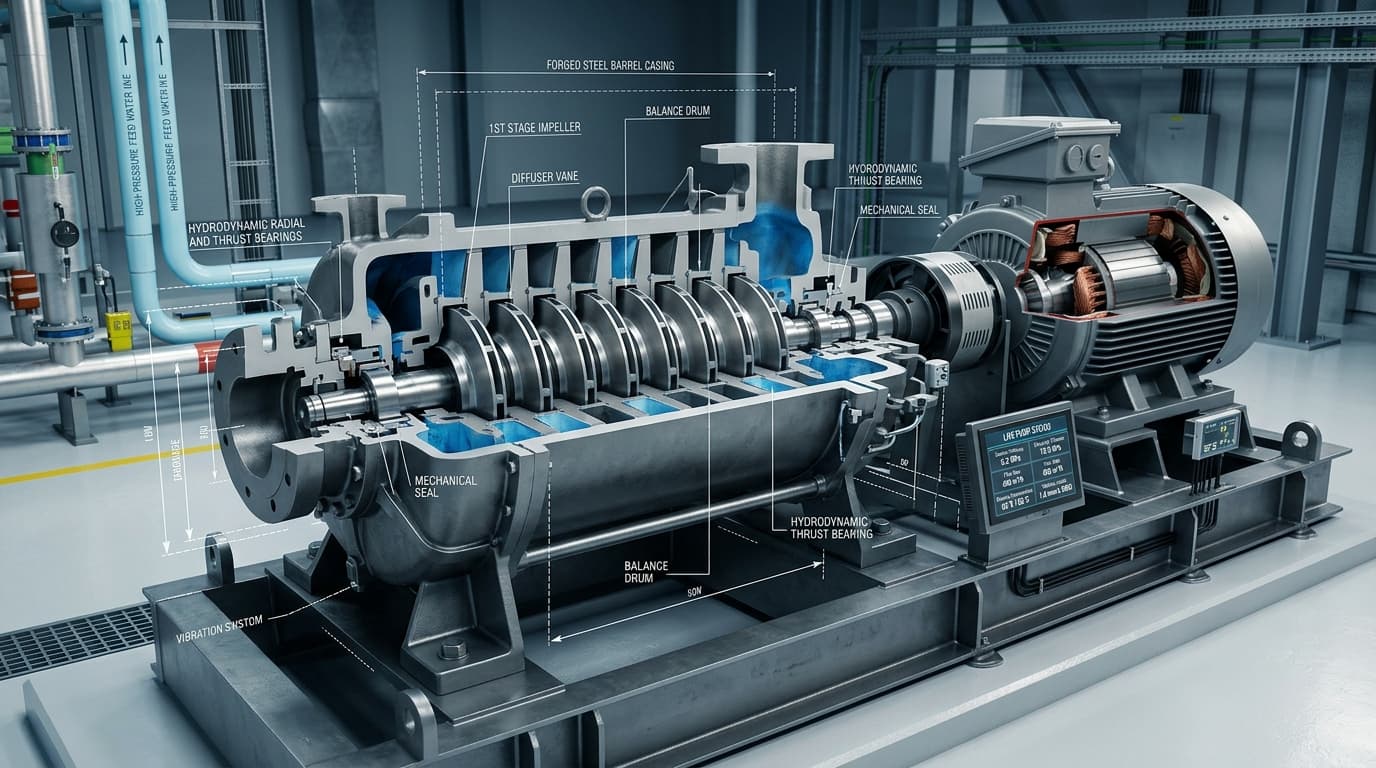

1. Thermodynamic Fundamentals of Boiler Feedwater Injection

In thermal power stations and industrial steam generation facilities, the boiler feed pump (BFP) represents the single most critical rotating asset in the thermodynamic Rankine loop. Operating continuously between a low-pressure deaerator storage tank and a high-pressure steam drum, the feed pump must inject subcooled water across pressure boundaries that frequently exceed 120 bar (1,740 psi).

Under-sizing a boiler feed pump leads to catastrophic consequences. If the pump cannot overcome the steam drum pressure during sudden load surges, the boiler water level collapses below the low-water trip setpoint, causing sudden emergency shutdowns.

Conversely, severe oversizing causes the pump to operate far to the left of its Best Efficiency Point (BEP). In this regime, massive hydraulic horsepower is dissipated as internal fluid heat, producing thermal recirculation, suction eye cavitation, and premature fatigue of shaft bearings and mechanical seals.

2. Derivation 1: Feedwater Mass Flow & Volumetric Conversion (IAPWS-IF97)

Feedwater mass flow differs fundamentally from boiler rated steam capacity because boilers lose water continuously through surface blowdown. Surface blowdown is mandatory to purge concentrated silica, chlorides, and dissolved solids.

M_feed = M_steam × [ 1 + (X_blowdown / 100) ]

Where:

M_feed: Continuous required feedwater mass flow rate (kg/h or lb/h).
M_steam: Boiler Maximum Continuous Rating (MCR) steaming rate (kg/h or lb/h).
X_blowdown: Continuous surface blowdown fraction (typically 2.0% to 6.0%).

Centrifugal pumps are volumetric displacement machines, not mass displacement devices. To convert mass flow into operating volumetric flow ($Q_{operating}$), the engineer must employ true liquid density derived from the international steam formulations (IAPWS-IF97).

Feedwater Temp (°C)	Saturation Pressure (bar a)	Liquid Density (kg/m³)	Specific Volume (m³/kg)	Expansion Error vs 1000 kg/m³
105 °C (Packaged Tank)	1.21 bar	954.5 kg/m³	0.001048	+4.76%
120 °C (Industrial Deaerator)	1.99 bar	943.1 kg/m³	0.001060	+6.03%
135 °C (Watertube Cogeneration)	3.13 bar	930.2 kg/m³	0.001075	+7.50%
160 °C (Utility Power Station)	6.18 bar	907.4 kg/m³	0.001102	+10.20%

As proven by the thermodynamic data above, assuming ambient water density of 1,000 kg/m³ results in a severe volumetric deficit of 5% to 10%. ASME BPVC Section I mandates applying a flow design safety factor ($S_{flow}$) between 1.15 and 1.25 to accommodate boiler drum swell during sudden firing increases:

Q_design = [ M_feed / ρ_water(T, P) ] × S_flow

3. Derivation 2: Total Dynamic Head (TDH) & Hydraulic Resistance

Centrifugal pumps do not create pressure; they impart kinetic velocity to the fluid, which converts into static liquid column height (Head). Total Dynamic Head represents the net mechanical energy per unit weight that the pump must transfer to the fluid:

TDH = [ (P_drum_g - P_suction_g) / (ρ × g) ] + (Z_drum - Z_tank) + Σ h_friction

The static head term represents the net vertical elevation difference between the deaerator liquid surface and the boiler drum inlet nozzle. When the deaerator is elevated high above the pump centerline, it provides flooded suction, reducing static work.

Discharge line hydraulic losses ($\Sigma h_{friction}$) include three major components that must never be omitted:

High-Pressure Economizer Bank: Flowing through serpentine economizer tubing introduces 1.5 to 3.5 bar (22 to 50 psi) of frictional pressure drop at full steaming load.
Modulating Feedwater Control Valve (FCV): The control valve requires a minimum pressure drop of 2.0 to 4.0 bar across its trim to maintain accurate control authority over drum level.
Safety Valve Overpressure Margin: ASME Section I mandates that feed pumps supply full flow against 103% to 105% of maximum boiler design pressure to ensure feedwater injection during safety valve popping events.

4. Derivation 3: Net Positive Suction Head Available (NPSHa) & Flashing Dynamics

Cavitation is the most destructive physical failure mode in boiler feed applications. When the local static pressure inside the pump suction eye falls below the fluid saturation vapor pressure, vapor cavities form instantly. As these micro-bubbles travel into higher pressure regions across the impeller blades, they implode with velocities exceeding 1,000 m/s, generating localized micro-jet pressures up to 10,000 bar.

NPSHa = [ (P_suction_abs - P_vapor) / (ρ × g) ] + (v² / 2g) + Z_suction - h_f_suction

The Saturated Deaerator Law: In thermal deaerator storage vessels, boiler feedwater exists at its exact saturated boiling temperature. Consequently, $P_{suction\_abs} = P_{vapor}$, causing the pressure term to cancel out completely:

∴ NPSHa = Z_suction - h_f_suction

This thermodynamic identity reveals that the vertical liquid height of the deaerator vessel above the pump centerline ($Z_{suction}$) is the sole driving head protecting the machine against cavitation flashing. Per Hydraulic Institute standard (ANSI/HI 9.6.1), the net suction margin must satisfy:

NPSHa ≥ NPSHr + 1.0 m (or 1.20 × NPSHr, whichever is greater)

5. Derivation 4: Hydraulic Power, Shaft BHP & Electric Motor Selection

The mechanical power transferred directly to the moving water column is computed via:

P_hydraulic = (Q_m3h × ρ × g × TDH) / (3.6 × 10^6) [kW]
P_shaft (BHP) = P_hydraulic / η_pump
P_motor = P_shaft × S_motor

Industrial multistage feed pumps operate with hydraulic efficiencies ($\eta_{pump}$) typically between 68% and 82%. Commercial electric induction motors (rated per IEC 60034 or NEMA MG-1) must include non-overloading margins ($S_{motor}$ between 1.10 and 1.15) to guarantee motor protection during cold plant restarts.

6. Industrial Worked Calculation: 45 Ton/Hour Watertube Steam Plant

Plant Design Specifications:

Boiler Steam Output ($M_{steam}$): 45,000 kg/h (45 t/h)
Drum Operating Pressure ($P_{drum}$): 42.0 bar(g)
Continuous Surface Blowdown ($X_{blowdown}$): 3.5%
Deaerator Operating Conditions: 130°C (ρ = 934.8 kg/m³, P_vapor = 2.70 bar a)
Deaerator Liquid Elevation ($Z_{suction}$): 8.5 m above pump centerline
Boiler Drum Inlet Elevation ($Z_{drum}$): 18.0 m above pump centerline
Suction Line Losses ($h_{f\_suction}$): 0.6 m
Discharge Friction Losses (Piping + Economizer + FCV): 4.8 bar (52.3 m)
Pump Efficiency ($\eta_{pump}$): 74%
Manufacturer NPSHr: 3.8 m

Step-by-Step Calculation Trail:

1. Mass Flow: M_feed = 45,000 × (1 + 0.035) = 46,575 kg/h

2. Operating Flow: Q_operating = 46,575 / 934.8 = 49.82 m³/h

3. Design Flow (1.20 factor): Q_design = 49.82 × 1.20 = 59.79 m³/h (263.2 GPM)

4. Pressure Head: H_pressure = (42.0 × 10^5) / (934.8 × 9.80665) = 458.2 m

5. Static Elevation Head: H_static = 18.0 - 8.5 = 9.5 m

6. Friction Head: H_friction = 52.3 + 0.6 = 52.9 m

7. Total Dynamic Head: TDH = 458.2 + 9.5 + 52.9 = 520.6 m

8. Design TDH (1.10 factor): TDH_design = 520.6 × 1.10 = 572.7 m (1,879 ft)

9. Hydraulic Power: P_hyd = (59.79 × 934.8 × 9.81 × 572.7) / 3.6e6 = 87.2 kW

10. Shaft Brake Power: BHP = 87.2 / 0.74 = 117.8 kW (157.9 HP)

11. Recommended Motor Size: 132 kW (Next Standard IEC Frame Size)

12. Net Suction Head: NPSHa = 8.5 - 0.6 = 7.9 m

13. NPSH Margin: ΔH = 7.9 - 3.8 = +4.1 m (PASS — Robust Margin)

7. Frequently Asked Questions (FAQ)

How does continuous boiler surface blowdown affect feedwater pump sizing?

Boilers require continuous surface blowdown (typically 2% to 6% of steaming rate depending on makeup water silica and conductivity limits) to purge dissolved solids. The pump mass flow must be sized as M_feed = M_steam × [1 + (X_blowdown / 100)]. Sizing purely for steam output results in rapid drum water level collapse whenever blowdown valves modulate open.

Why does assuming water density of 1,000 kg/m³ cause dangerous pump undersizing?

Feedwater drawn from pressurized thermal deaerators operates between 105°C and 160°C. Thermal expansion reduces water density to between 905 and 955 kg/m³. Assuming 1,000 kg/m³ underestimates required volumetric flow by 5% to 10%, pushing the pump to end-of-curve operation where severe cavitation, motor thermal trip, and shaft deflection occur.

What head safety margin is mandated by ASME BPVC Section I for boiler feed pumps?

Per ASME Section I (Power Boilers), the feed pump must deliver required water flow at a pressure exceeding the highest safety valve setpoint plus full piping friction, economizer drop, and feed control valve differential. A standard design head margin of 5% to 10% (safety factor 1.05 to 1.10) is mandatory to prevent thermal steam backflow during load transients.

Why does saturated boiling in the deaerator eliminate pressure head in NPSHa calculations?

Because water in a thermal deaerator storage tank is kept at boiling equilibrium, the surface vapor pressure exactly equals the vessel operating pressure (P_suction_abs = P_vapor). Consequently, the pressure term (P_suction - P_vapor) / (ρ × g) evaluates to zero. The sole driving force protecting the pump against cavitation is the vertical static height of the deaerator liquid column minus suction piping friction.

What is Minimum Continuous Stable Flow (MCSF) and why is an Automatic Recirculation Valve (ARV) required?

At low plant steam loads (startup or hot standby), an unbypassed multistage feed pump dissipates shaft mechanical power directly into fluid internal energy. Within 15 to 45 seconds, the trapped fluid boils, inducing destructive flashing, dry running of wear rings, and rotor seizure. An ARV automatically modulates a minimum flow (typically 25% to 35% of BEP flow) back to the deaerator.
